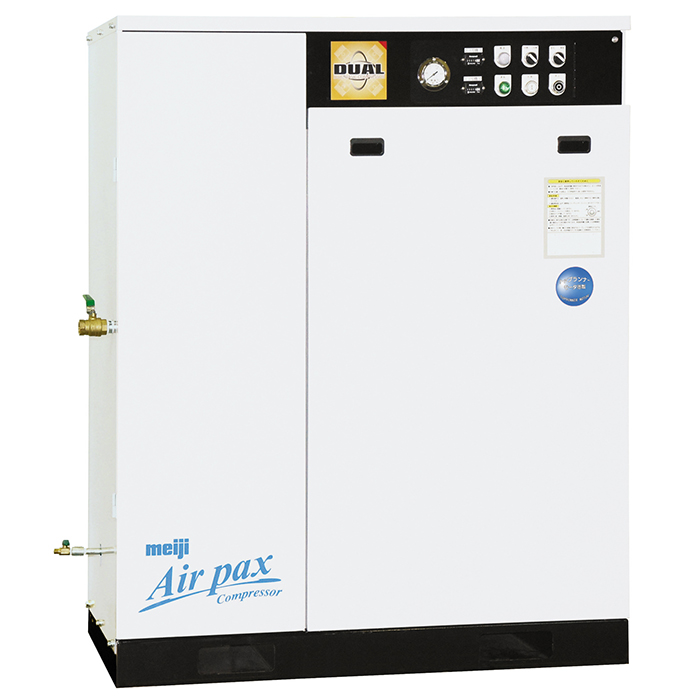

APK-D220
-
APK-D44A / APKH-D44A
-
APK-D74A / APKH-D74A
-
APKH-D44A
Features
Package Compressor AIR PAX
- ●Silent package compressor which are sound / vibration proof.
- ●Control method is pressure switch type which cuts unnecessary electric power(0.75～3.7kW).
- ●Automatic operation control system which automatically switches continuous and
- intermittent operation depending on usage(5.5～15kW).
- ●High efficiency 2 stage compressor installed
- (Excluding APK-D44A and models with power consumptions from 3.7～15kW)
- ●Low vibration with silent design. Back
Specifications
APKシリーズ
| Model No. | APK-D44A | APK-D74A | APK-D110 | APK-D150 | APK-D220 | ||
|---|---|---|---|---|---|---|---|
| Motor output | kW[ps] | 4.4[6] (2.2+2.2) |
7.4[10] (3.7+3.7) |
11[15] (5.5+5.5) |
15[20] (7.5+7.5) |
22[30] (11+11) |
|
| Operating pressure | MPa[kgf/cm2] | Main:0.78～0.98 Sub:0.68～0.88 |
Main:0.7～0.9 Sub:0.65～0.85 |
||||
| Free air delivery | L/min | 465 | 830 | 1320 | 1760 | 2655 | |
| Basic Compressor |
Rotating speed | rpm | 985 | 1020 | 910 | 945 | 945 |
| Model No. | GNO-3D-D44 | BT-37-D74 | BT-55CP | BT-75CP | BT-110CP-220 | ||
| Air tank capacity | L | 9 | 14 | - | |||
| Air outlet dia.×qty. | B | Rc1×1 | |||||
| Approx. dimensions | L×W×H(mm) |
1101(1201) ×742 ×1391(1442) |
1431(1559) ×846 ×1636 |
1506(1630)×950×1686 | |||
| Noise level | dB(A) | 58 | 63 | 62 | 65 | ||
| Weight(including motor) | kg | 331 | 386 | 577 | 623 | 725 | |
APKHシリーズ
| Model No. | APKH-D44A | APKH-D74A | APKH-D110 | APKH-D150 | ||
|---|---|---|---|---|---|---|
| Motor output | kW[ps] | 4.4[6] (2.2+2.2) |
7.4[10] (3.7+3.7) |
11[15] (5.5+5.5) |
15[20] (7.5+7.5) |
|
| Operating pressure | MPa[kgf/cm2] | Main:1.2～1.4 Sub:1.1～1.3 |
||||
| Free air delivery | L/min | 440 | 755 | 1135 | 1600 | |
| Basic Compressor |
Rotating speed | rpm | 785 | 900 | 900 | 870 |
| Model No. | BTH-22-D44 | BT-37-D74 | BT-55FP-D110 | BT-75CP | ||
| Air tank capacity | L | 9 | 14 | |||
| Air outlet dia.×qty. | B | Rc1×1 | ||||
| Approx. dimensions | L×W×H(mm) |
1101(1201) ×742 ×1391(1442) |
1431(1559) ×846 ×1636 |
|||
| Noise level | dB(A) | 58 | 59 | 64 | 62 | |
| Weight(including motor) | kg | 350 | 379 | 577 | 623 | |
