Hand Spray Guns：Automotive Refinishing Type
PRODUCT
-

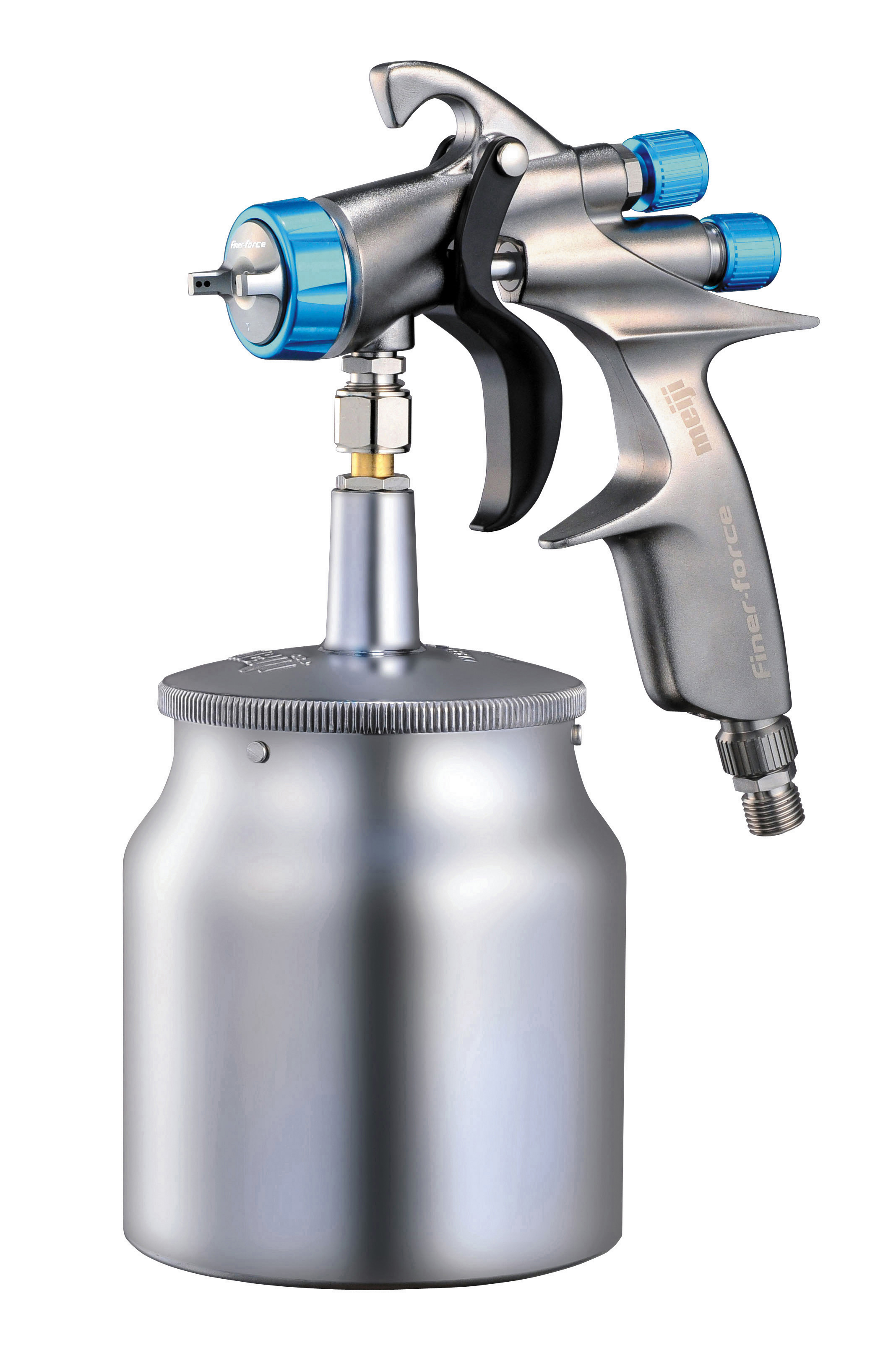

FINER-FORCE-S T & 7SB
Features
1. Taking over same features from FINER-FORCE Gravity type.
2. Fluid nozzle size of 1.4mm (same as type T nozzle.)
Type T air cap applied for Micro fine atomization thin coating.
3. Realizes wide spray pattern with small amount of air.
4. Optimal for metallic pearl coating.
Specifications
| Model No. | FINER-FORCE-S T | |
|---|---|---|
| Paint feed system | Suction | |
| Nozzle bore |
mm (in) |
1.4 (0.055) |
| Spraying pressure |
MPa (PSI) |
0.2 (29) |
| Spraying distance |
mm (in) |
200 (7.874) |
| Air consumption |
L/min (cfm) |
210 (7.4) |
| Paint spraying volume | mL/min | 100 |
| Maximum effective pattern width |
mm (in) |
220 (8.661) |
| Pattern shape | Tulip | |
| Required compressor output | kW | 1.5 or more |
| Weight |
g (lbs) [oz] |
325 (0.72) [11.5] |
| Standard paint cup | 7SB,7SLB,10SB-2,10SLB-2 | |
|
