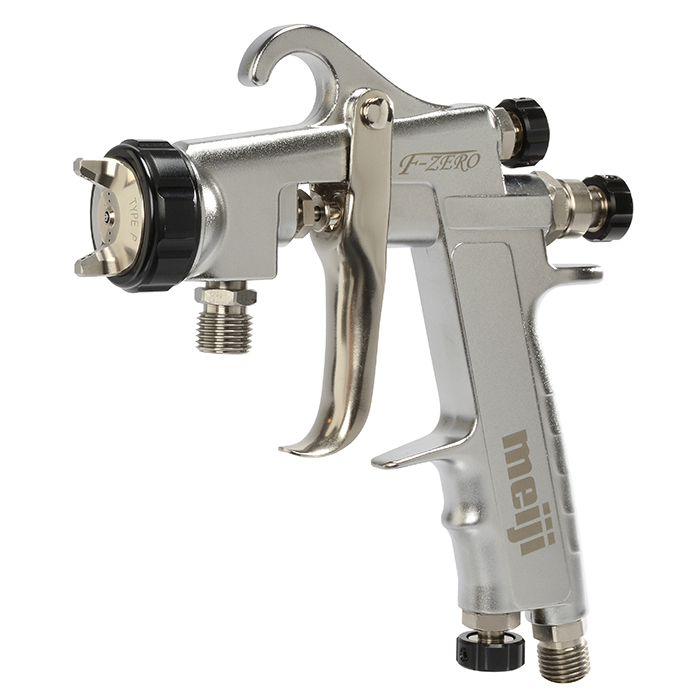

F-ZERO-P Series

Hand Spray Guns：General Purpose Type

F-ZERO Type-P is our discontinued model since May, 2022.

Thank you always for choosing Meiji air spray guns.

	New atomizing system Improving the spray finishing by optimum air flow

●Realizing high quality paint film by optimum spraying paint volume.
●Stable air flow vastly realizes the prevention of air pressure lost.
●Reduction of paint consumption, and small air consumption in saving energy.
●Optimum air flow brings the reduction of paint adhesion to air cap set.
●Easy handling with optimum weight balance and light weight.
●Reduction of trigger load, and improvement of usability with lower resistance packing.
●Waterborne compatibility.
●Improvement of parts durability.
●Addition of Semi-tulip pattern.
●Each nozzle bore size has its own air cap set.
●Air cap sets for suction, gravity, and pressure type are interchangeable in the same fluid nozzle bore size

Special air cap Type P comes from automotive refinishing gun F-ZERO in Finer atomization system.

Realizing ideal atomization and wider pattern in smaller air consumption.

▼F-ZERO Series
Model No.		F-ZERO-P08	F-ZERO-P10	F-ZERO-P13
Paint feed system		Pressure
Nozzle Bore	mm (in)	0.8 (0.031)	1.0 (0.039)	1.3 (0.051)
Standard air cap		Type P
Spraying Pressure	MPa (PSI)	0.2 (36)
Spraying distance	mm (in)	200 (7.874)
Air consumption	L/min (cfm)	240 (8.5)		230 (8.1)
Paint spraying volume	mL/min	160	250	340
Maximum effective pattern width	mm (in)	220 (8.661)	280 (11.024)	320 (12.598)
Pattern Shape		Tulip
Required compressor output	kW	1.5 or more
Weight	g (lbs) [oz]	295 (0.65) [10.4]
Standard paint cup		Paint pressure feed tanks diaphragm paint pumps

Paint viscosity should be 20 seconds for lacquer enamel using a Meiji model V-1 viscosity cup.
Feed pressure should be 0.08MPa(12PSI) for P types.
The paint spraying volume and maximum effective pattern width indicated for T types should be determined
using urethane-based automotive repair paint with a viscosity of 12 seconds and a Meiji model V-1 viscosity cup.
