Features

F-ZERO-S Type T is our discontinued model since February, 2022.

New model to take over would be FINER FORCE B/T/R.

Thank you always for choosing Meiji air spray guns.

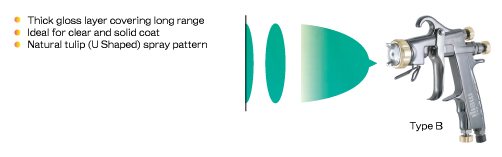

F-ZERO Type B　　 Thick gloss paint layer

"Type B" offers smooth surfaces, mirror finishes and luster.

It is designed to maximize the performance in the painting style that the thicker layers of coating

(i.e., clear coat, solid coat and solid clear coat) utilize by requiring fewer passes of paint.

High paint spraying volume and the finest level of atomization are harmonized in "Type B".

This feature enables the clear coat to attain a deep gloss and wet look finish.

Thick glossy coating created by "Type B" realizes a deep gloss layer in solid black and a high

luminance mirror layer in solid white.



PARTICLE CONTROL Industry's First Deliberate irregurar-sized air ports vary speed and amount of air creating a turbulent air flow :  This enhances the shearing power for atomization.



FLUID CONTROL

"Type B" is equipped with 1.6mm fluid nozzle, which is wider for its fluid spraying volume

( equivalent to the volume for conventional 1.4mm fluid nozzle).

Smaller fluid spraying volume for wider bore creates a smooth delivery for high viscosity fluid for clear coating.

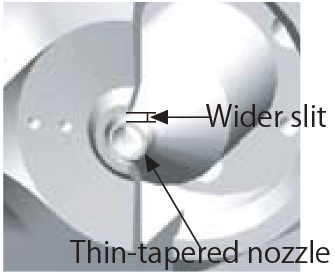

Well-controlled spraying nozzle tip is tapered and long in order to gain spraying air volume by making the slit

between the nozzle and air cap wider.

The long nozzle tip prevents fluid puddles.



ECO-FRIENDLY　　 Industry's First  "Type B" is equipped with 1.6mm fluid nozzle, which is wider for its fluid  spraying volume (equivalent to the volume for conventional 1.4mm fluid nozzle).



F-ZERO Type T　　 Fine atomization and flat surfaces

"Type T" creates the finest atomization and less irregular surfaces.

It is suitable for metallic and pearl base coat paints which require a painter to create a  high luminance mirror finish.

It is designed for painters who prefer to spray from a short distance in order to create a thinner layer of metallic or pearl paint.

"Type T" creates thin homogeneous layers of coating film and is therefore suitable for tint gradation spray.

This model is designed to maintain the finest atomization even when it is used at low pressure with low spraying air volume,

which is the setting required for tint gradation spray.





F-ZERO Type R　　 Thin mirror finish

"Type R" is a SVLP (Small Volume Low Pressure) spray gun. The spraying pattern

shape features color reproducibility, which is required for a color base coat ,

and granular quality for metallic and pearl base coats.

The ease of use of the "Type R" makes it suitable for users at all levels of spraying skill.

This allows painters to obtain the ideal paint layer, making it appear as if the piece of work was painted by hand with a brush.

SVLP performs high transfer efficiency making it suitable for creating a thin layer.

"Type R" optimizes performance by creating a thin layer of paint with a fine level atomization that leads to the thin mirror finish

required by metallic and pearl base coating.

The compact narrow spraying pattern and clear outline highlights the target spraying area, allowing for effective transitions when

placing passes of paint side by side.

The easy target helps the painter recognize the spraying range, thereby preventing unnecessary overlap;

this in turn creates a thinner layer of mirror finish with the minimum amount of paint.





F-ZERO-S Type T Fine atomization and flat surfaces

This is a special body circuit for suction type, and it realizes same performance as gravity type.

it is possible to use large paint cup and to paint wide area easily.



COMPATIBLE with WATERBORNE Industry's First Mirror polished stainless steel in the nipple and nozzle passage realizes smoother delivery of fluid. This leads to improvement in both washability and the prevention of paint adhesion.

GUN STAND Our griginal gun stand is equipped, and it is possible for gun to stand by itself.  Also, wwith preventing the scratches of nozzle tip and air cap,  it avoids the deformation of spraying pattern.

* Paint cup should be ordered separately.
