Contact UsHM-PU-2 Type
Supplying Equipment：2 Component Paint System
PRODUCT
-

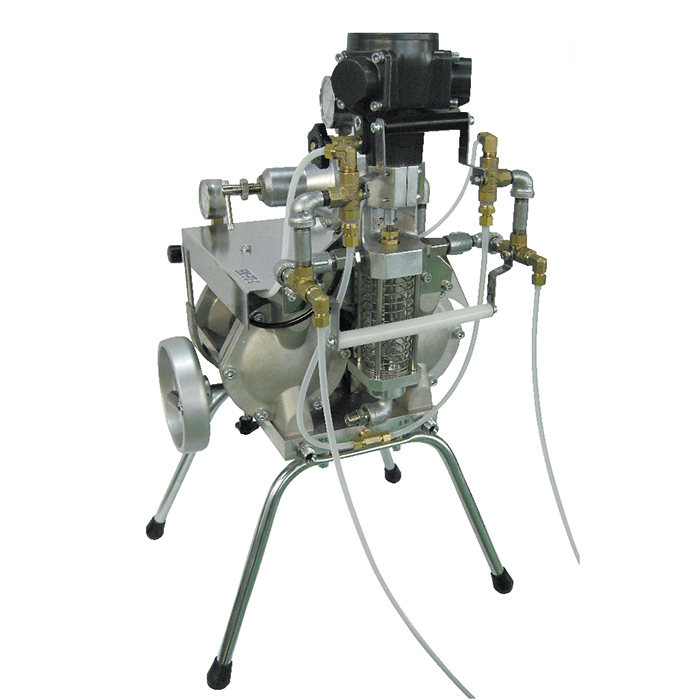

HM-PU-2
Features
HM-PU-2 type
- ●Paint mixing rate can be arbitrarily set from 1/4 to 1/10 for multiplicity of uses.
- ●Paint mixing rate can be adjusted finely according to change of paint viscosity caused by temperature change.
- ●Required paints for mixing is equivalent to the actual amount of paint to spray.
- This contributes to minimize paint consumption.
- ●Quick-drying urethane(Pot life: Up to 30mins) is also applicable.
- ●Easy maintenance by applying diaphragm pump with no sliding portion.
- ●Mixing state is always visible by applying glass tube for agitator.
- ●Safety operation by air driving pump and agitator.
Specifications
| Model No. | HM-PU-210 | HM-PU-2 | |
|---|---|---|---|
| Mixing rate | mm | 1/4～1/10 | 1/1～1/4 |
| Max operating pressure |
MPa (PSI) |
0.69 (100) |
|
| Paint pressure adjustment range |
MPa (PSI) |
0～0.2 (0～29) |
|
| Max. flow rate | mL | 1,200 | 1,500 |
| Paint outlet bore | G1/4×1 | ||
| Air inlet bore | G1/4×1 | ||
| Required compressor output | kW | 1.5 | |
| Approx. dimensions |
mm (in) |
L:500×W:500×H:700 (L19.7×W:19.7×H:27.6) |
|
| Weight |
kg (lbs) |
25 (55) |
|
