SPRAY GUN

PA Series (Automatic Type)

Supplying Equipment:Paint Pressure Feed Tanks

PRODUCT

  • PA-10B

    PA-10B

  • PA-30B

    PA-30B

  • PA-30SB

    PA-30SB

  • PA-50B

    PA-50B

  • PA-50SB

    PA-50SB

Features

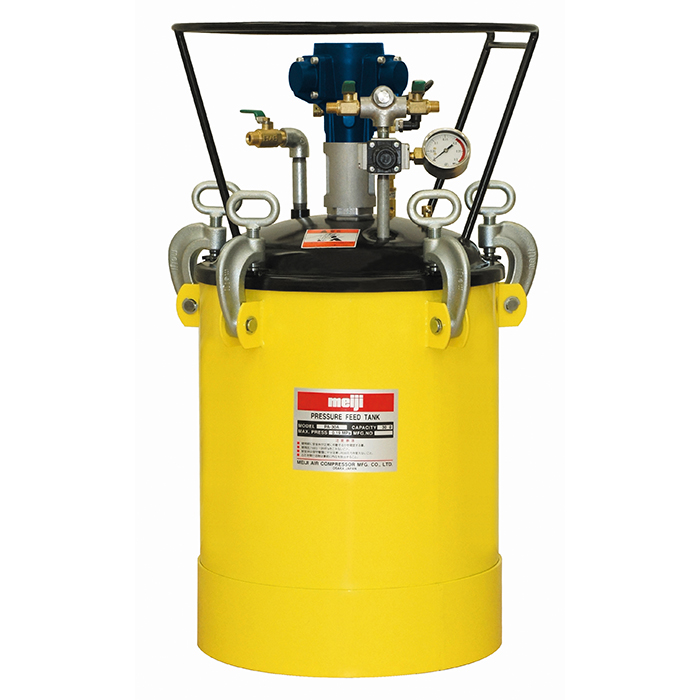

PAINT PRESSURE FEED TANKS

A paint pressure feed tank greatly improves work efficiency for painting large surface areas,

when working in elevated locations, and for continuous automatic painting.

Tanks are available in capacities ranging from 2.0 to 50 liters.

Two different types of paint stirring systems are available depending on the type of paint to be used.



Manual type :

For comparatively low sedimentation paint.



Air motor automatic type :

For organic solvent-based paints which are subject to color separation or sedimentation.







 ▽Inner Tanks for Paint Pressure Feed Tanks
Model No. PC-10PC-30PC-50PC-8SPC-30-SPC-50-S
Capacity L 10 27 45 7 27 45
Stainless -

Specifications

▽Mixing system : Automatic (Air motor)
Model No. PA-10BPA-30B
<PA-30SB>
PA-50B
<PA-50SB>
Capacity

L

(gal)

10

(2.6)

30

(7.9)

50

(13.2)

Paint outlet (dia.×qty) G1/4×1 G3/8×1 G3/8×2
Air intlet (dia.×qty) G1/4×1 G1/4×2
Max. operating pressure

MPa

(PSI)

0.69

(100)

0.19<0.35>

(28<51>)

0.19

(28)

Approx.dimensions
(Width×height)

mm

(in)

310×622

(12.205×24.488)

454×710

(17.874×27.953)

454×945

(17.874×37.205)

Inner tank PC-10 Included Not Included
Weight

kg

(lbs)

23

(50.70)

29

(63.93)

36

(79.37)

Measure-ment M3 0.09 0.16 0.21
On S models, Stainless steel passage for waterborne compatibilty.
A multi-purpose model with 30-liter, 0.35MPa(51PSI) specifications is also available by special order.
