CanPax

Apparatus Concerned：Can Pax

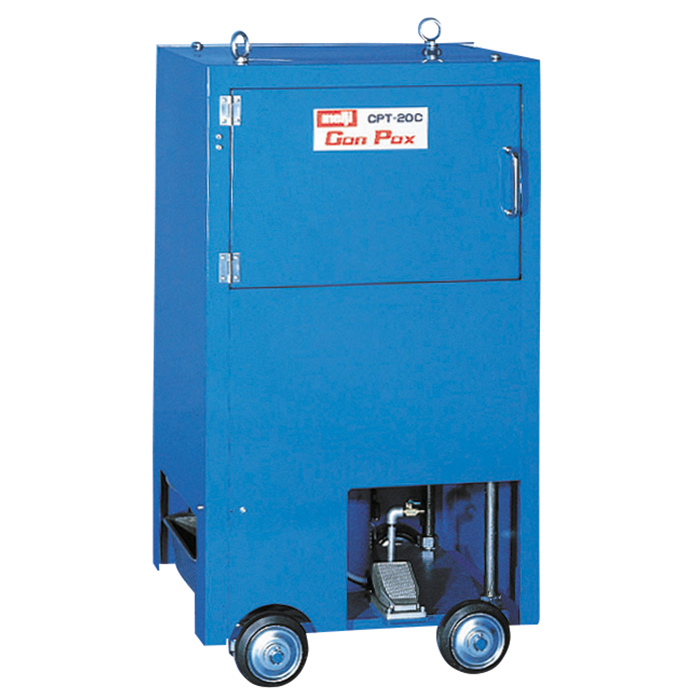

CPT-20C Automatic air pressure type

Waste can smashing machine which can approximately smash a large can with a handle into 1/10 ,

and 18 liter square can into 1/8 from its original size.

Easy control foot valve type with safety mechanism which the machine will only operate while the door is closed .

Residual liquids will be collected into a pallet .

18 liter square can could be cut / opended simply by spinning the handle .

Paint can could be cut / opened all 4 sides , 3 sides and 2 sides simply by adding or reducing the blades .

Blade can be polished or grinded by a Grinder .

・Make sure to use without any residual liquids inside .
・Remove cap from the can when in use .
・When cleaning , maintenance or not in use , make sure the Air supply is off and no remaining air inside .

Waste can smashing machine which can smash a large can with handle and 18 liter square can in longitudinal direction .

As it is electric hydraulic type , all you need is 3 phase 200V power supply so compressor is not necessary .

Includes safety mechanism which the machine will only operate while the door is closed , emergency stop button ,

and also has safety automatic power off mechanism in case if the motor does not stop after pressing .

Easy operation with a button from start to finish just by one touch .

Residual liquids will be collected into a pallet .

・Make sure to use without any residual liquids inside .
・Remove cap from the can when in use .
・When cleaning , maintenance or not use , make sure the Air supply is off and no remaining air inside .

Model No.		CPT-20C	CPE-20D	CPH-18
Air pressure	MPa(PSI)	0.49 - 0.98 (71 - 142)	-
Pressurization	kN	23.1	34.9	-
Processing	ability / hour	240	120	-
Air valve		Foot valve type	-
Outer diameter	(width×Length×Height)mm(in)	595×620×1105 (23.4×24.4×43.5)	694×596×1525 (27.3×23.5×60)	430×760×850< (16.9×29.9×33.5)
Weight	kg (lbs) [oz]	230 (507) [8113]	250 (551) [8818]	28 (1.7) [988]
Type of cans that can be processed		218L suqare can , 1L - 4L can , Large can with handle etc.		18L square can
