Contact UsSpray gun for Photocatalyst applications
Other Guns：Photocatalytic equipment
PRODUCT
-
F55-G
-
F110-G
-

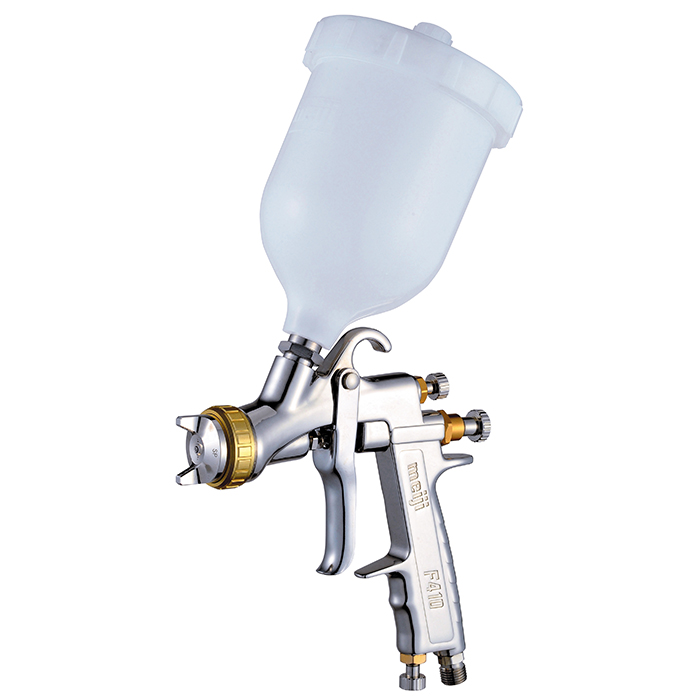

F410-G
Features
Features
・Optimum spraying performance for application of photocatalyst
・Improves work efficiency due to wide spraying pattern even when spraying small amount.
・High transfer efficiency which saves good amount of paint
Usage
・For application of photocatalyst
・Superhydrophilic applications for antifogging, antifouling, antibacterial, water purification and gas decomposition.
Specifications
| Model No | Usage | Nozzle bore | Air consumption | Spraying distance | Maximum effective pattern width | Paint cup capacity |
| mm(in) | L/min(cfm) | mm(in) | mm(in) | |||
| ▽Compact Type | ||||||
| F55-G05 | Interior | 0.5(0.020) | 66(2.3) | 150(5.906) | 90(3.543) |
1G-2U (0.15L Stainless) |
|---|---|---|---|---|---|---|
| F55-G08 | 0.8(0.031) | 120(4.724) | ||||
| ▽Small general purpose | ||||||
| F110-G0510T | Exterior | 0.5(0.020) | 170(6.0) | 200(7.874) | 160(6.230) |
4GF-U (0.45L Stainless) |
| F110-G0810T | 0.8(0.031) | |||||
| ▽Large size & volume | ||||||
| F410-G10EVW | Exterior | 1.0(0.039) | 315(11.1) | 250(9.843) | 250(9.843) |
6CP (0.6L Resin) |
| F410-G12EVW | 1.2(0.047) | 280(11.024) | ||||
3-14, 2-chome, Tagawa, Yodogawa-ku, Osaka, Japan
