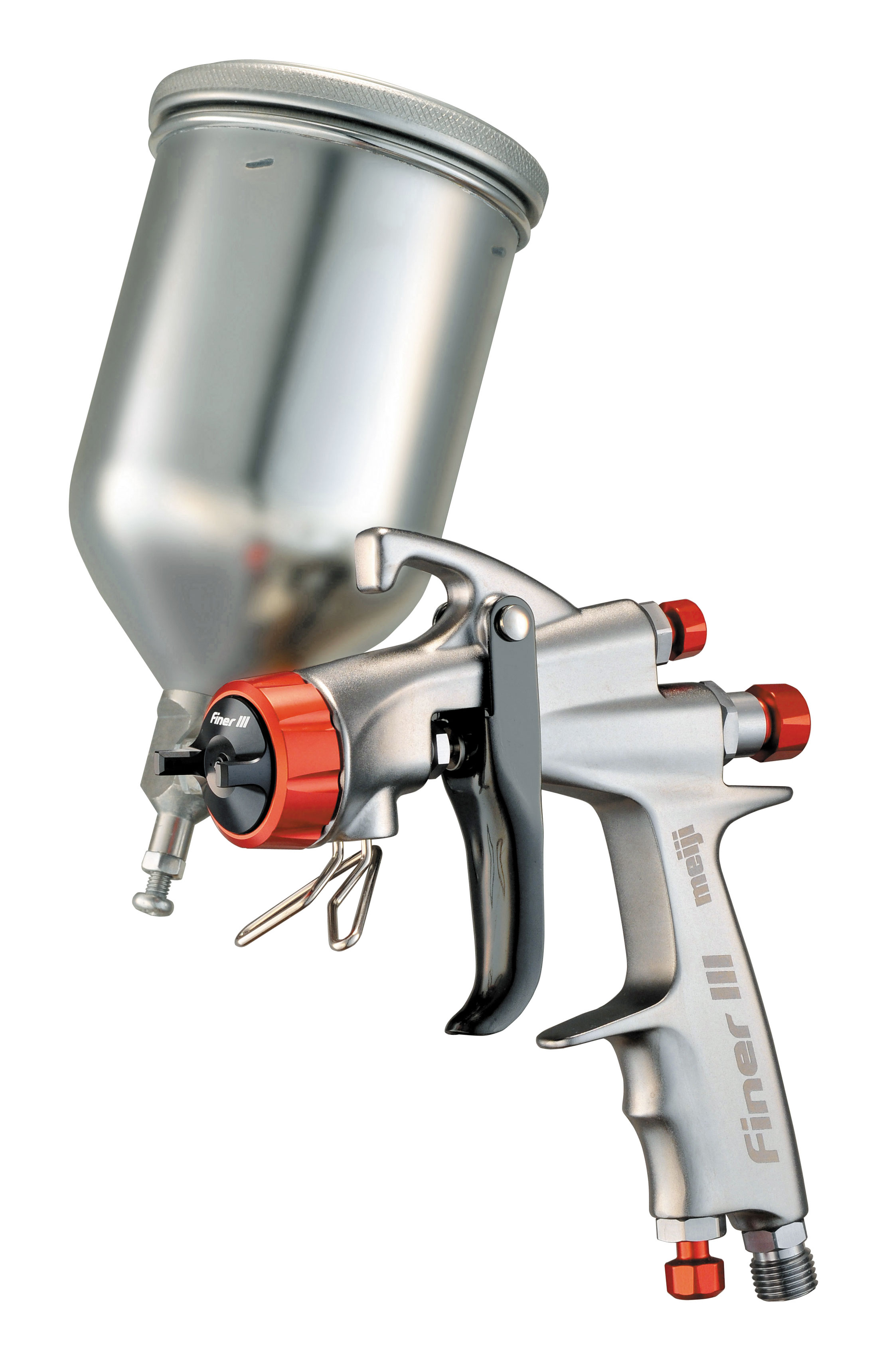

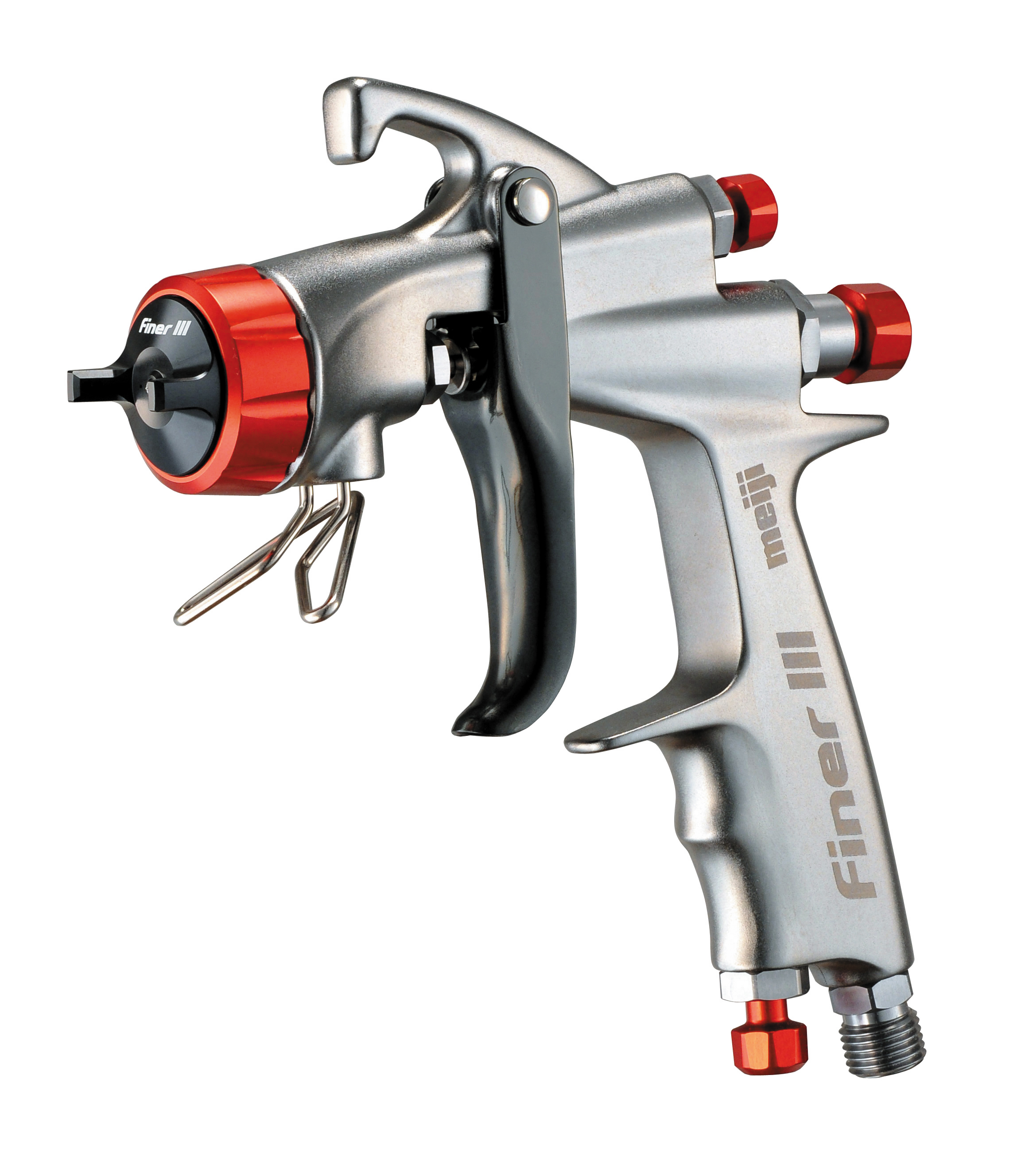

Features



Perfection without unevenness. Tradition reaches new heights.

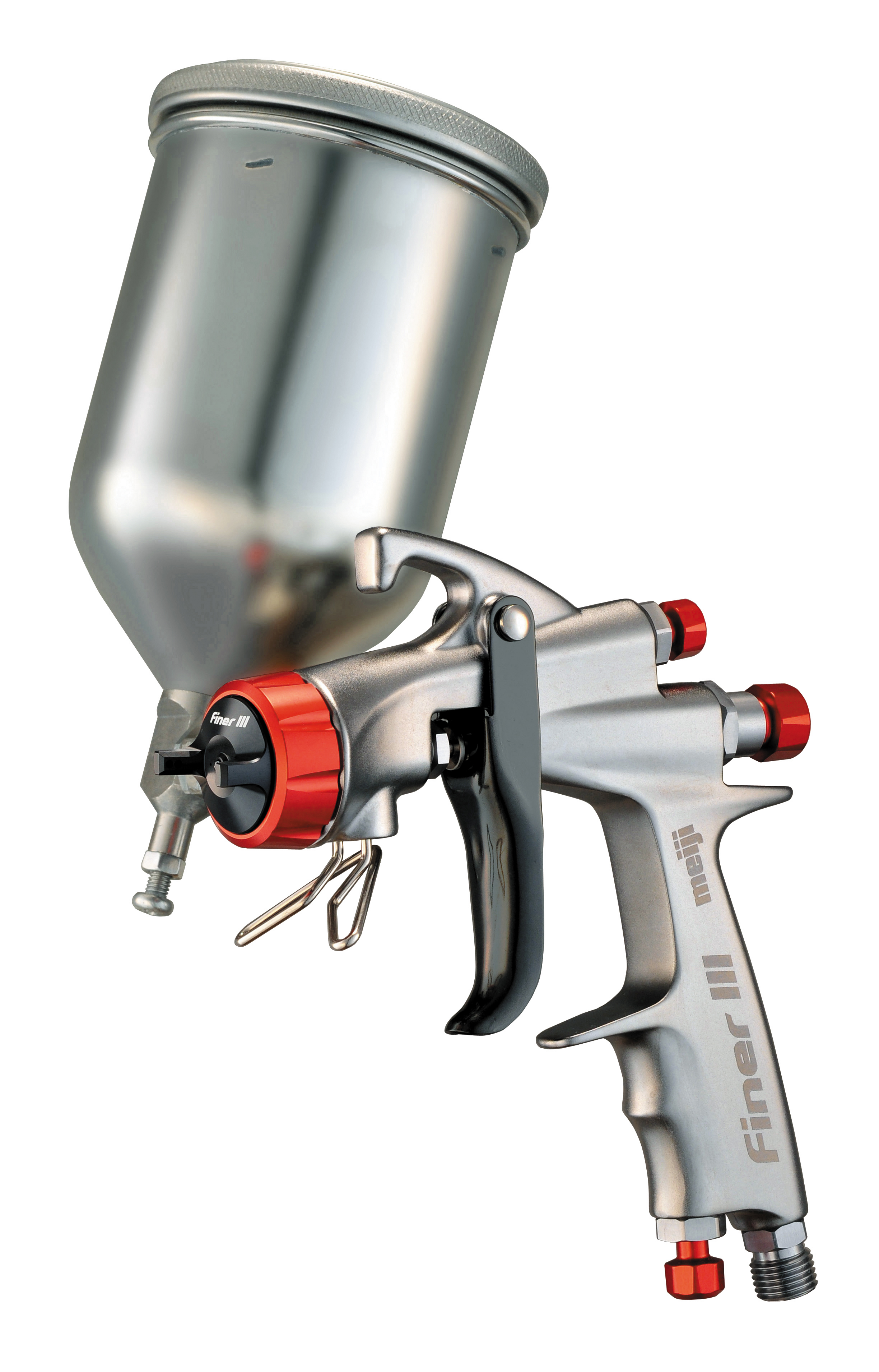

Inheriting the features of the FINER II PLUS, this spray gun has a wide adjustment range that allows for everything from touch-ups to block painting and blurred painting.





- Atomization performance is adjusted to the appropriate particle size, achieving highly stable wide pattern shapes.



- Properly adjusted pattern dispersion makes it easy to form a uniform paint film.



- Pattern design aimed at users who paint at close to medium distances (approximately 150-200mm).

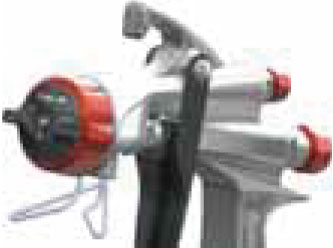

Ergonomic grip that can be held in a variety of positions.





A stylish, new standard design, "Seamless Design," that embodies the Meiji style.

・The streamlined, seamless body with minimal irregularities improves fit and ease of maintenance.

・The ergonomic grip accommodates various holding styles. It's neither too thick nor too thin.

By raising the contact surface with the palm, it provides an exquisite, almost clinging fit.

・Reduces fatigue from long, continuous painting sessions.



High-atomization technology「MMFT」

 Our original atomization technology (Meiji Micros Fine Technology)



 - Thin-walled nozzle tip with multi-stage clean air flow and taper control mechanism



- Efficiently delivers clean air to the tip through multiple stages, reducing air flutter.



- Maintains smooth flow velocity, ensuring paint output and improving atomization performance.

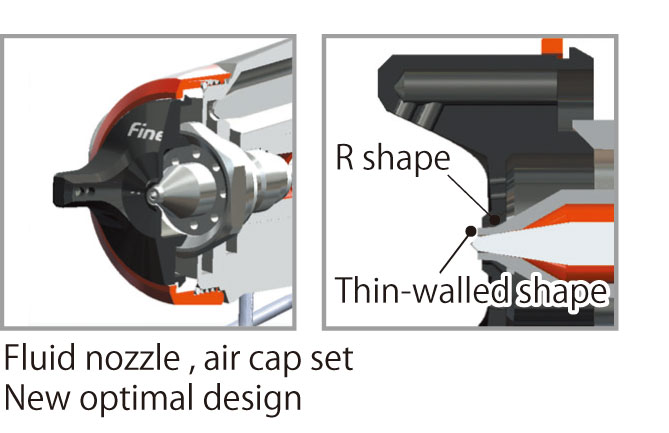

Fluid nozzle, air cap set  　R shape

New optimal design           Thin-walled shape

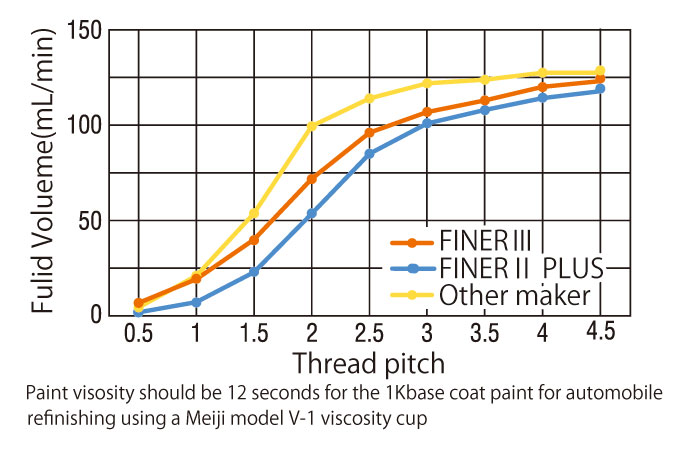

 Optimized Paint Spraying Volume



 - Gradually increase paint spraying volume. Fine adjustments are possible without sudden increases in flow rate.



- MEIJI's traditional 0.75mm paint adjustment screw pitch. The sleeve allows for smooth adjustments.

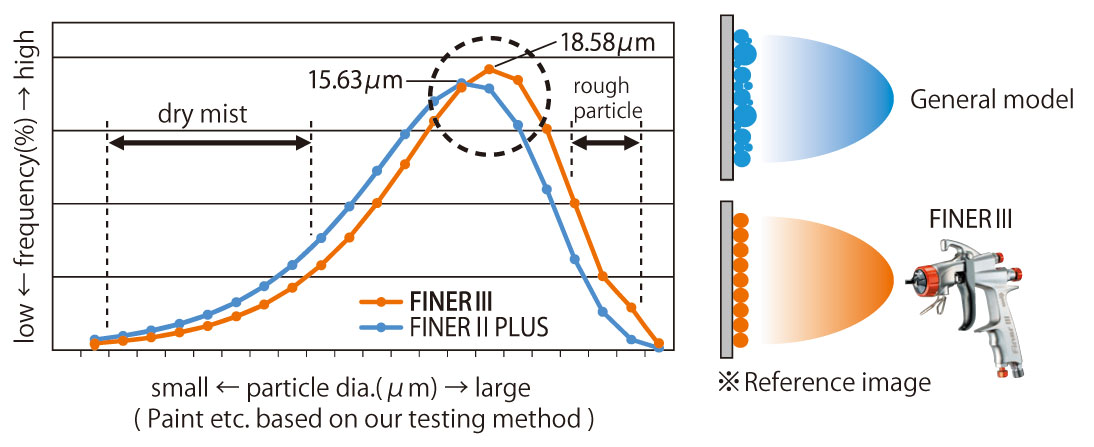

Optimized Particle Size



・Pursuit of Atomization Performance

・Improved atomization performance by aligning particle size to the optimal size (20-30μm) and approaching the ideal particle size.

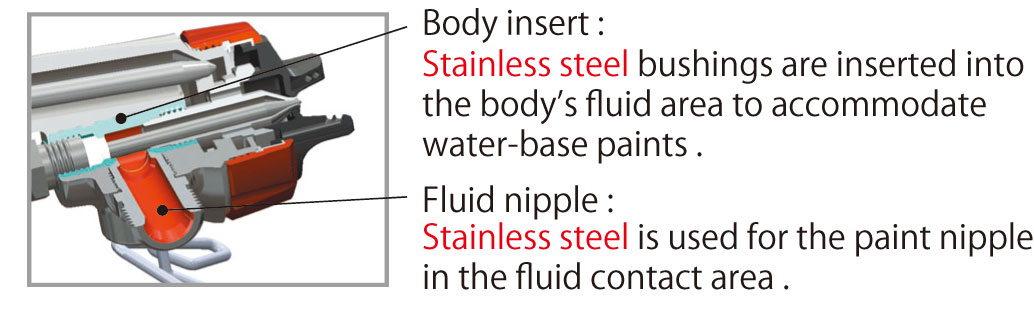

Waterborne compatibility



Trigger



- The trigger is made of stainless steel, reducing corrosion even when using water-based paints.



- The fulcrum, force point, and point of action have been redesigned and placed in optimal positions, reducing strain on the suction gasket and improving durability.

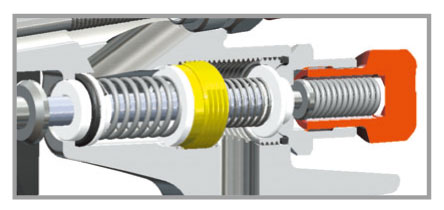

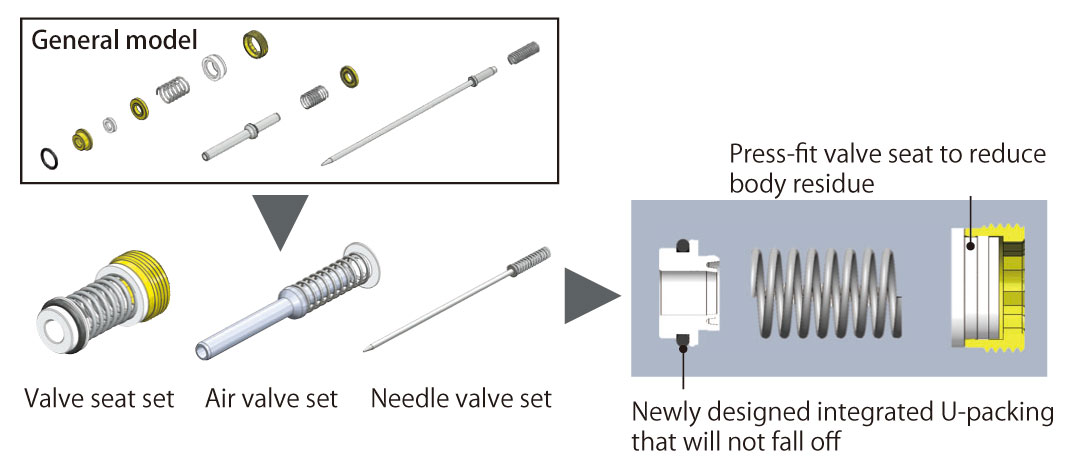

 Sliding Parts



- Parts are packaged together for easier maintenance.



- Further improvements to the automatic tensioning function (Patent 5222039).

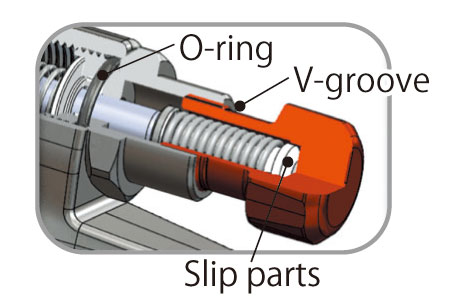

Smart Parts



O-ring: No need for sealing material, improved sheeting.



V-groove: Indicates full paint adjustment.

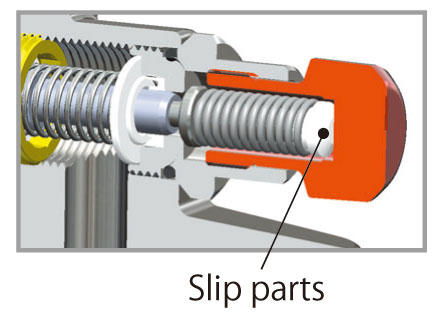

Slip parts: Allows for smooth adjustment.

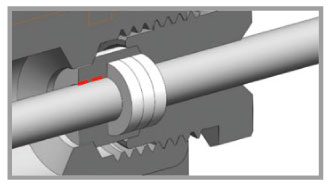

Seal Parts



Improved needle packing screw.

Minimized distance to the seat reduces paint buildup, reduces tip leakage due to paint buildup, and improves durability.



Control Parts



High-touch areas such as adjustment screws and air caps are gloss-anodized for compatibility with water-based paints.



- The air cap is made of aluminum for lightweight construction.



- The cap nut features nine grooves for easy turning and improved workability.



- The adjustment screws feature a crystal-like shape, and the cutting method has been revised to eliminate unnecessary steps.



- A soft feel and reduced paint adhesion improve maintenance.



- The concealed threads reduce paint adhesion to threaded areas, a common problem.





Usage

Examples of Settings by Usage



Touch-up



---



A pattern width of approximately 100mm is ideal for light repairs, and a dispersed pattern shape with no paint pooling is ideal.





Solid Clear



---



Paints a thick film while enhancing the gloss of the painted surface. A thick oval pattern shape is ideal.





Metallic Pearl



---



Paints a thin, uniform film while forming a thin, uniform coating.

 Thick coatings are prone to metallic unevenness. A thin, flat pattern shape is ideal.
