Hand Spray Guns：Automotive Refinishing Type
PRODUCT
-

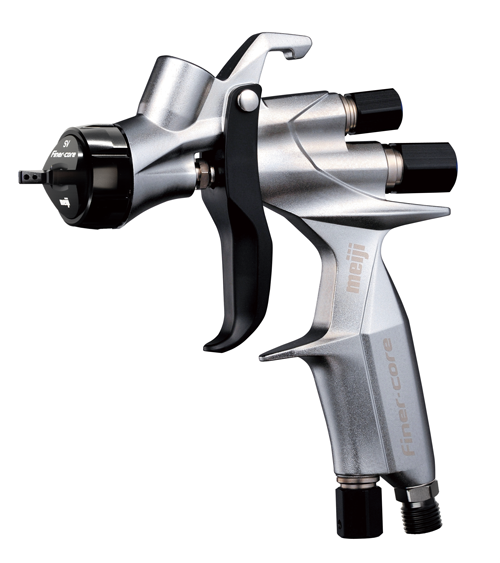

FINER-CORE-SV
-

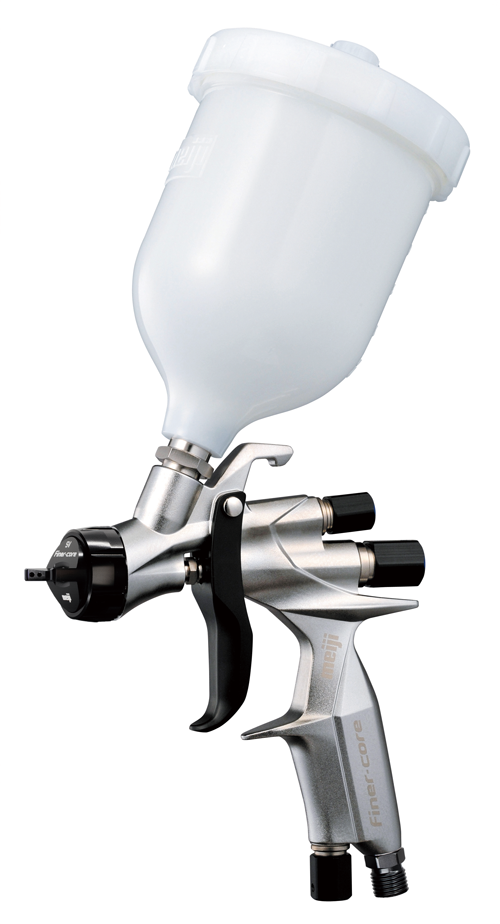

FINER-CORE-SV(6CP)
Features
1 ） Made for non-Japanese paint brand water base and high solid paints .
2 ） Appropriately tuned for all areas .
3 ） Ideal for painting with high viscosity paints
4 ） Newly designed fluid nozzle and air cap for better atomization .
5 ） Designed for best spray volume with 1.7mm fluid nozzle .
6 ） Wide pattern with low air consumption .
7 ） Aluminum air cap for water base application and lighter weight .
Specifications
| Model | FINER-CORE-SV | |
|---|---|---|
| Fluid nozzle | mm | 1.7 |
| Air cap | FINER-CORE-SV | |
| Spray pressure | MPa | 0.2 |
| PSI | 29 | |
| Spray distance | mm | 200 |
| in | 7.874 | |
| Air consumption | L/min | 275 |
| cfm | 9.7 | |
| Paint spraying volume | mL/min | 200 |
| Pattern width | mm | 330 |
| in | 12.992 | |
| Inlet | Air | G1/4 |
| Paint | G3/8 | |
| Weight | g | 325 |
| oz | 11.4 | |
| lbs | 0.72 | |
Paint viscosity : 25 seconds for water base automotive paint using Meiji model V-1 viscosity cup .
