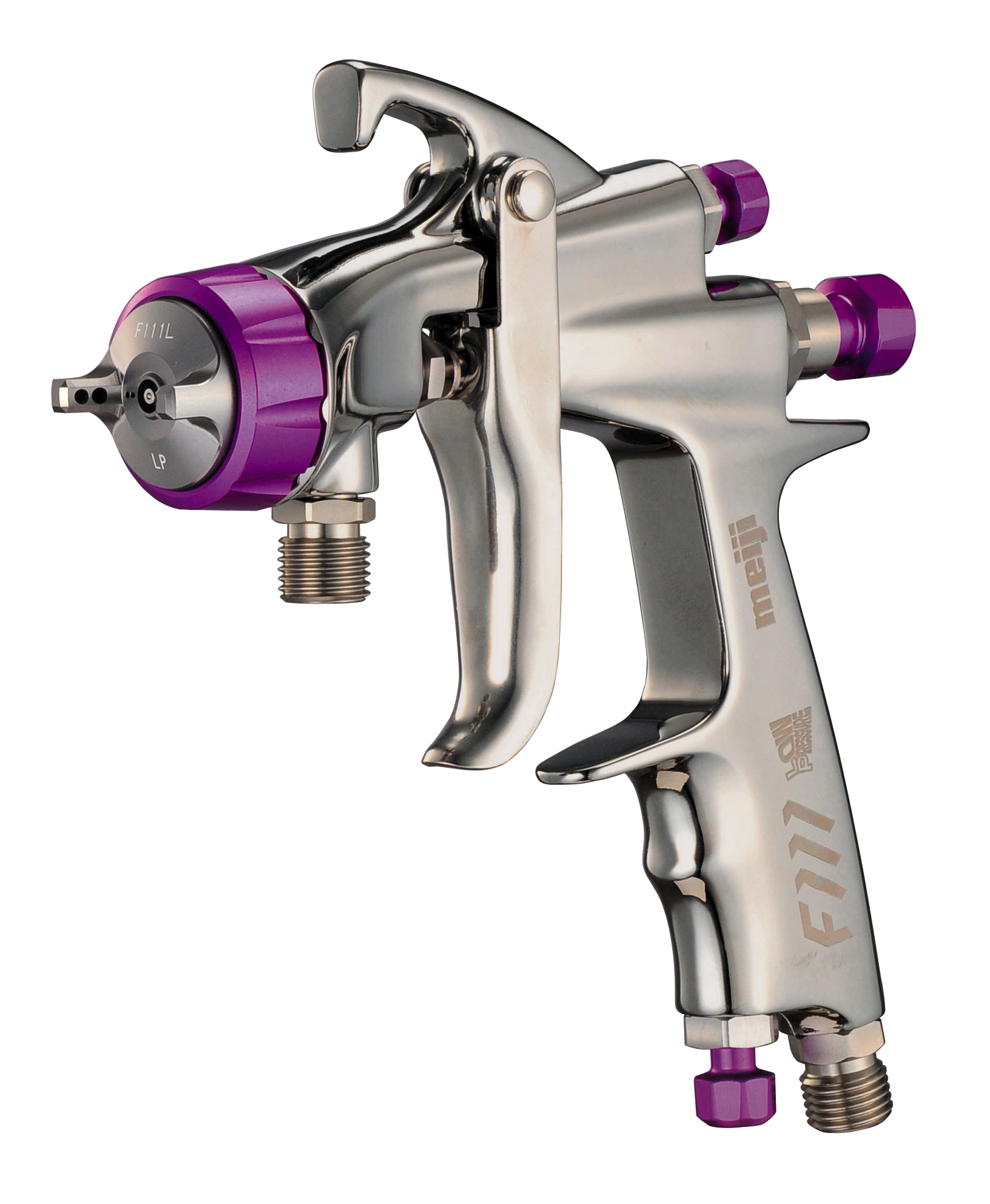

F111L-P
-

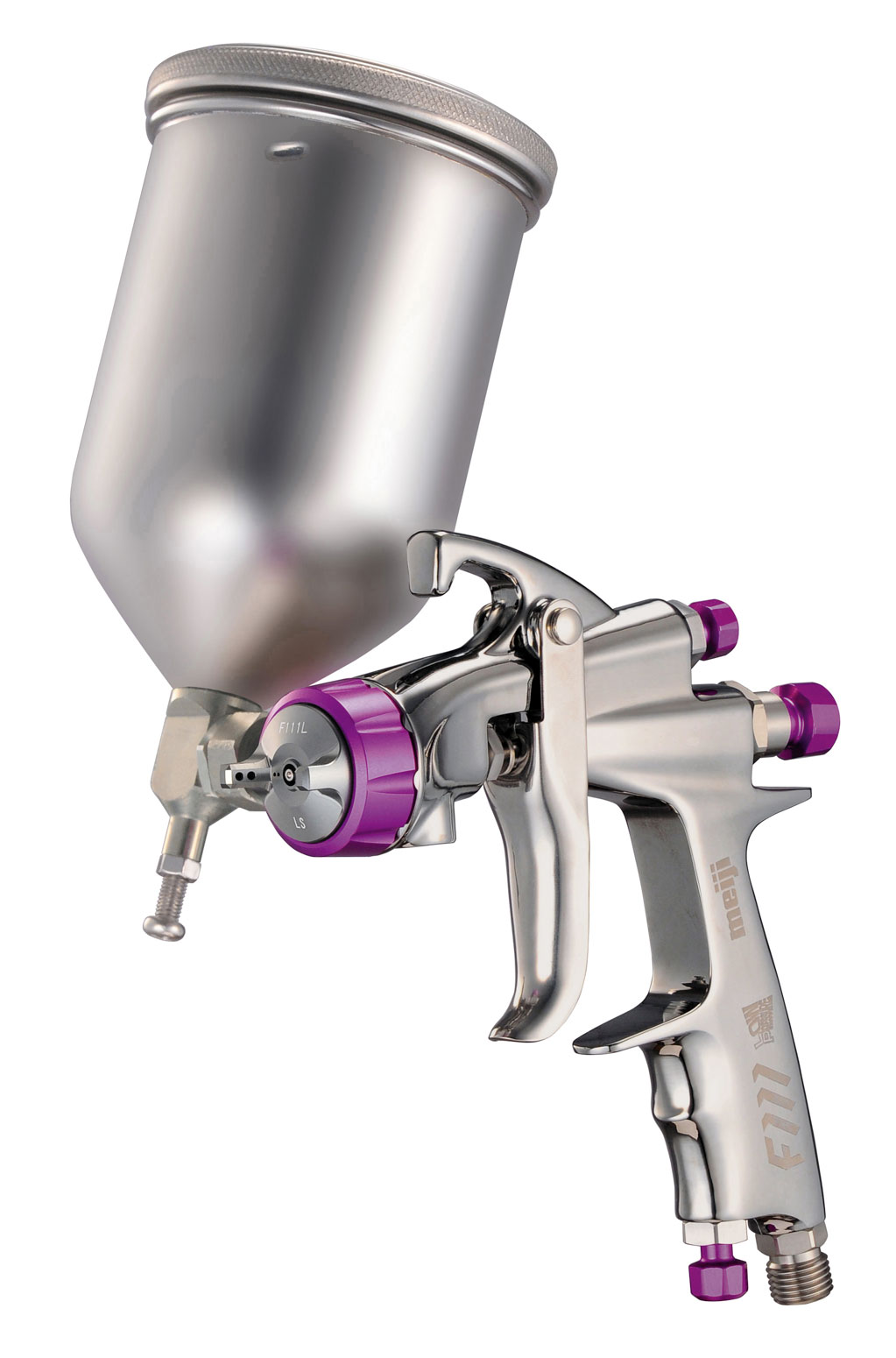

F111L-G
-

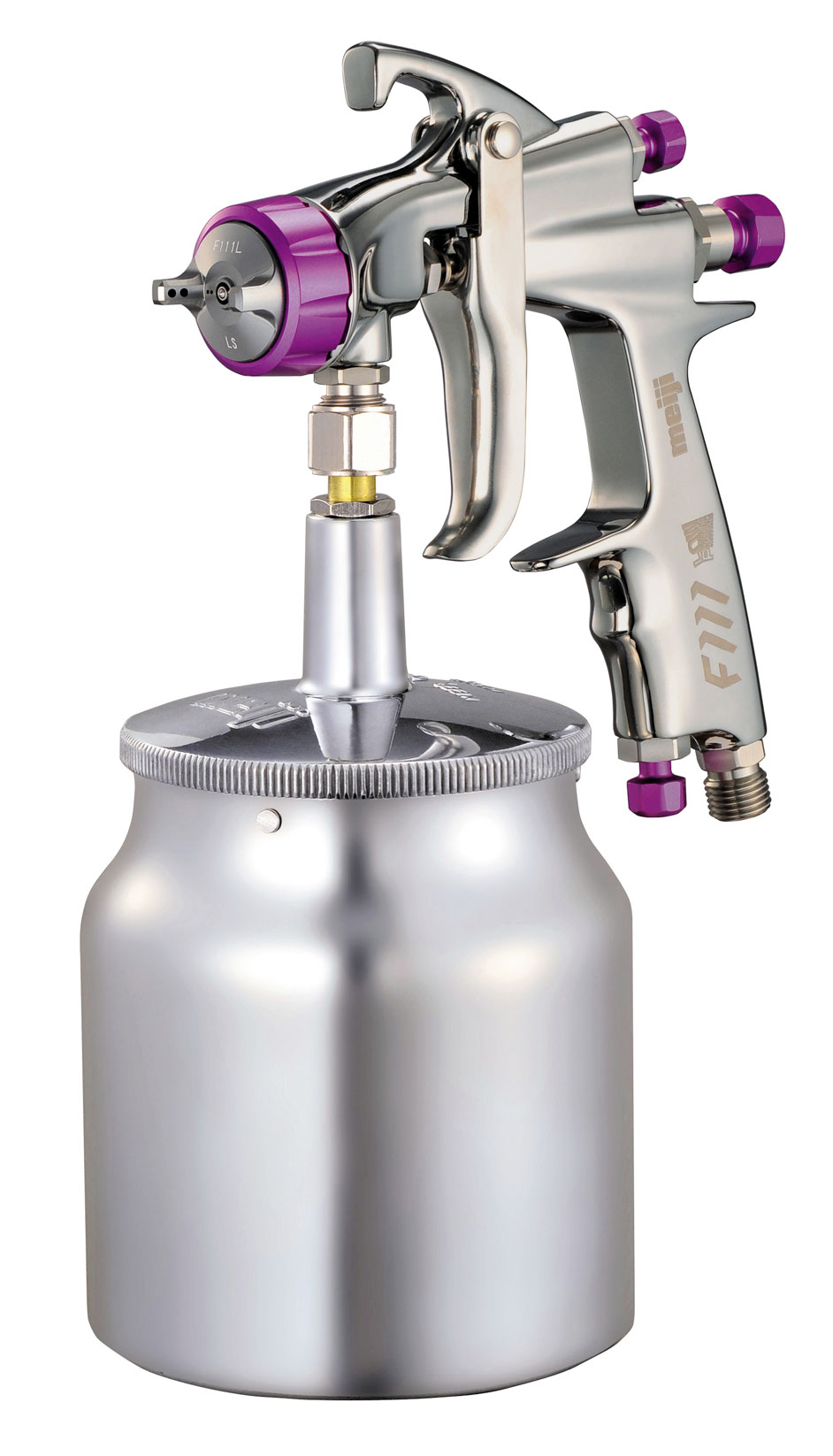

F111L-S
Features
New Low-Pressure Atomizing Hand Spray Gun Launched
The current model will cease production once the available components run out.

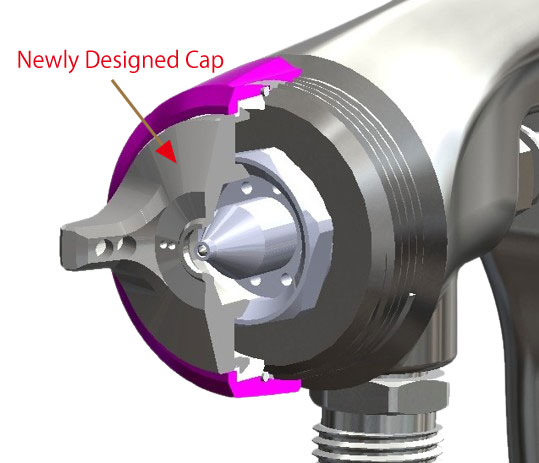

1. Newly Designed Cap
・ Improved atomization performance; reduced defects and overspray.
・ Aluminum material adopted for weight reduction
・ Stable performance across a wide spray pattern (minimizing unevenness)
・ Transfer efficiency increased by approximately 2% under the same conditions (compared to the F110L)
2. Fluid Adjusting Screw
Features a 1.0 mm thread pitch for enhanced workability.

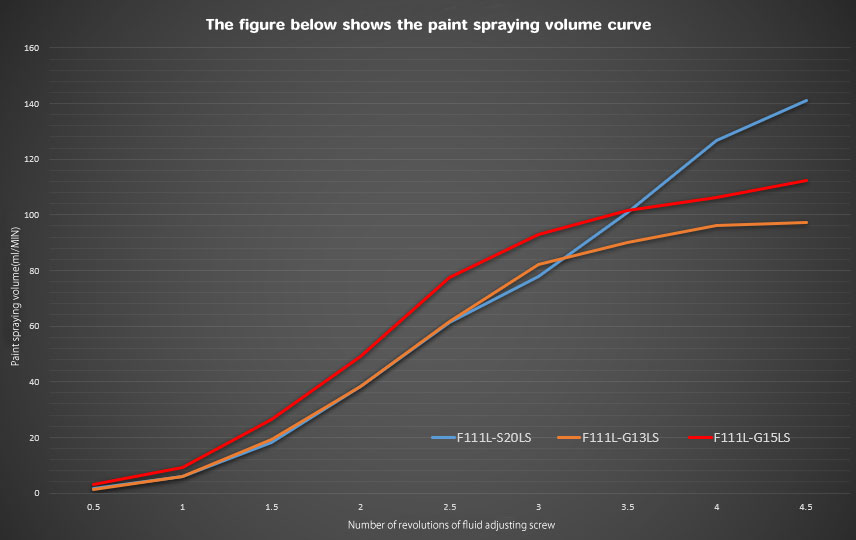

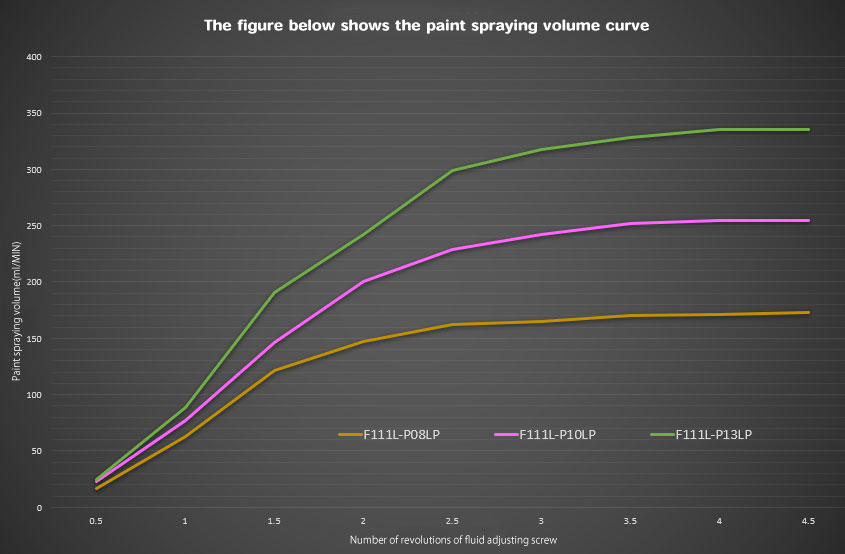

The figure below shows the paint spraying volume curve
VERTICAL : Paint spraying volume
HORIZONTAL : Number of revolutions of fluid adjusting screw
3. Spray Gun Body
・ Compatible with the F111 model; features a "Twilight Chrome" plated finish.
・ Stainless steel trigger
・ Ergonomically designed grip that accommodates various holding styles
・ Purple anodized finish on the cap nut and threaded sections
Specifications
| ▼F111L Series | |||||||
| Model No. | F111L-P08LP | F111L-P10LP | F111L-P13LP | F111L-S20LS | F111L-G13LS | F111L-G15LS | |
|---|---|---|---|---|---|---|---|
| Paint feed system | Pressure | Suction | Gravity | ||||
| Nozzle bore |
mm (in) |
0.8 (0.031) |
1.0 (0.039) |
1.3 (0.051) |
2.0 (0.079) |
1.3 (0.051) |
1.5 (0.059) |
| Spraying pressure |
MPa (PSI) |
0.27 (39) |
0.18 (26) |
0.16 (23) |
|||
| Air pressure inside cap |
MPa (PSI) |
0.07 (10) |
0.05 (7) |
||||
| Spraying distance |
mm (in) |
200 (7.874) |
|||||
| Air consumption |
L/min (cfm) |
475 (16.8) |
315 (11.1) |
290 (10.2) |
|||
| Paint spraying volume | mL/min | 170 | 255 | 335 | 140 | 100 | 115 |
|
Maximum effective pattern width |
mm (in) |
230 (9.055) |
260 (10.236) |
280 (11.024) |
270 (10.629) |
255 (10.039) |
265 (10.433) |
|
Required compressor output |
kW | 3.7 or More | |||||
| Weight |
g (lbs) [oz] |
290 (0.64) [10.2] |
|||||
| Standard paint cup |
Paint pressure feed tanks, diaphragm paint pumps |
7SB, 10SB-2, 7SLB |
1G-2U, 2GD, 4GD, 4GB-U, 4GP(A)-U, 4G-TA |
||||
| Paint viscosity should be 20 seconds for lacquer enamel using a Meiji model V-1 viscosity cup. Feed pressure should be 0.08MPa for P types. |
|||||||
