F-ZERO-S Type T & 7SB
-
F-ZERO-S Type T
Features
F-ZERO Type B/T/R is our discontinued model since May, 2022.
New model to take over would be FINER FORCE-S T.
Thank you always for choosing Meiji air spray guns.

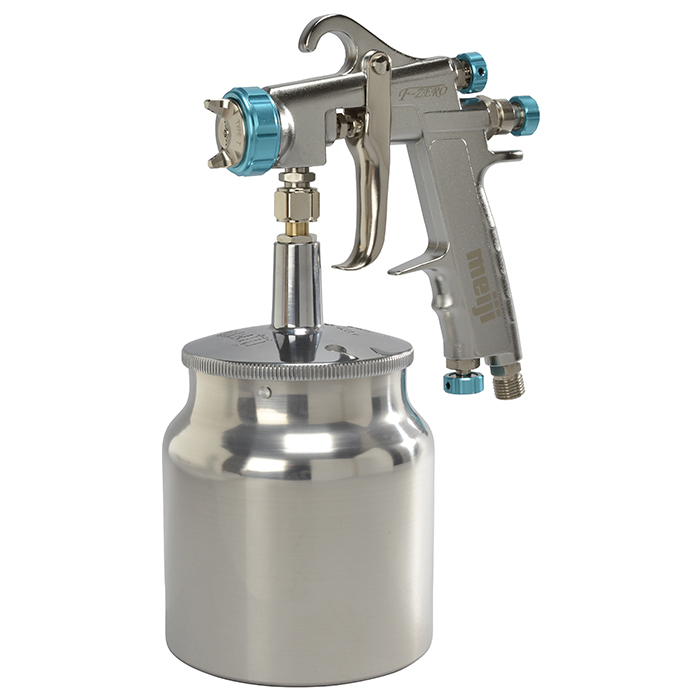

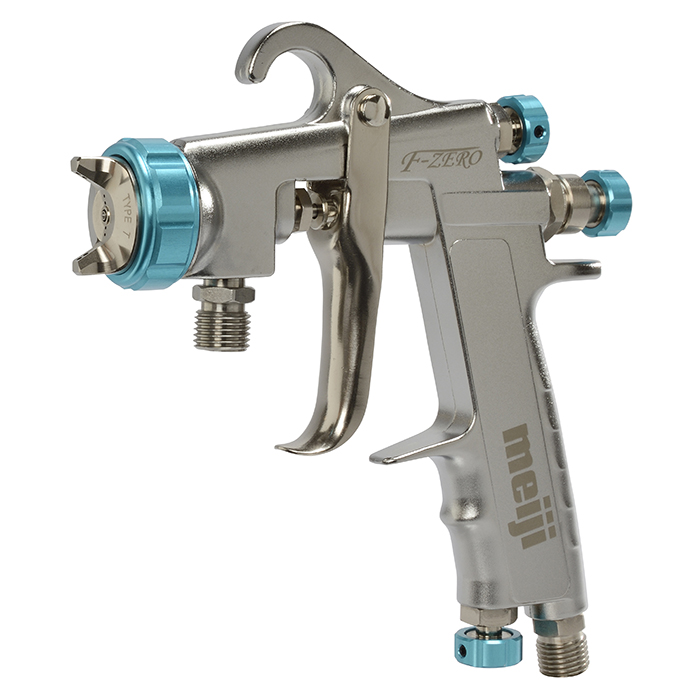

F-ZERO-S Type T Fine atomization and flat surfaces
This is a special body circuit for suction type, and it realizes same performance as gravity type.
it is possible to use large paint cup and to paint wide area easily.
|

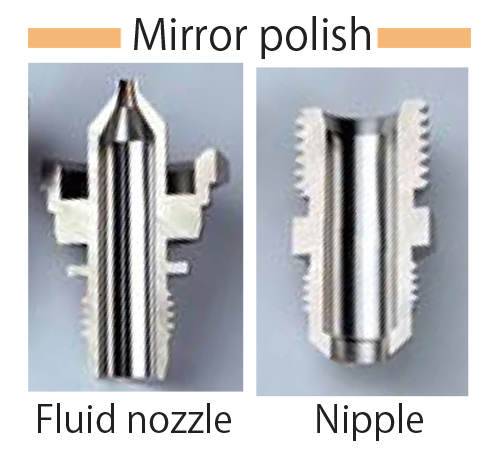

COMPATIBLE with WATERBORNE Industry's First Mirror polished stainless steel in the nipple and nozzle passage realizes smoother delivery of fluid. This leads to improvement in both washability and the prevention of paint adhesion. |
|
|
GUN STAND Our griginal gun stand is equipped, and it is possible for gun to stand by itself. Also, wwith preventing the scratches of nozzle tip and air cap, it avoids the deformation of spraying pattern. |
 |
* Paint cup should be ordered separately.
F-ZERO Type B/T/R is our discontinued model since February, 2022.
New model to take over would be FINER FORCE B/T/R.
Thank you always for choosing Meiji air spray guns.
Specifications
| Model No. | F-ZERO-S Type T | |
|---|---|---|
| Paint feed system | Suction | |
| Nozzle bore |
mm (in) |
1.4 (0.055) |
| Spraying pressure |
MPa (PSI) |
0.2 (29) |
| Spraying distance |
mm (in) |
200 (7.874) |
| Air consumption |
L/min (cfm) |
230 (8.1) |
| Paint spraying volume | mL/min | 120 |
| Maximum effective pattern width |
mm (in) |
220 (8.661) |
| Pattern shape | Tulip | |
| Required compressor output | kW | 1.5 or more |
| Weight |
g (lbs) [oz] |
295 (0.65) [10.4] |
| Standard paint cup | 7SB,7SLB,10SB-2,10SLB-2 | |
|
